Deploy Vault

Symbiotic is a highly modular protocol that already has a lot of separate parts and will have much more in the future. Therefore, this guide describes possible configurations of the Vault deployments.

General-purpose deployment

The first step for the ready-to-go Vault deployment is to determine how it is going to be used:

  1. As a very specific configuration inside some complex system of contracts that needs to be designed and created
  2. As a very pure configuration with most of the parameters non-updatable that can be hardly manageable in practice
  3. As some common configuration that may cover most of the use cases

For our needs, we choose the 3-rd option, and the steps to get a production-ready configuration are the following:

  1. Deploy a Burner Router which is a specific implementation of the Burner module

  2. Deploy core modules such as Vault, Delegator, Slasher using the deployed Burner Router address

  3. Deploy staker rewards with the use of the Vault’s address got during the previous step

1. Burner Router

Burner is a contract that receives slashed collateral tokens. Symbiotic does not specify the whole processing of the funds flow after the slashing. For example, there are some possible ways:

  • Fully burn the funds (unwrap the underlying assets if needed)
  • Redistribute to good operators
  • Compensate the victims (in case of using the stake as a security deposit)

From our side, we provide:

  • DefaultBurners - pure burner contracts for several ETH LSTs
  • BurnerRouter - a router contract that allows redirection of the slashed funds to different addresses depending on the slashing networks and the slashed operators

Our pure burners have one advantage and disadvantage simultaneously - they are fully immutable, removing any trust assumptions in that direction. However, in case of the underlying LST’s upgrade of the contracts, their flow may break. Therefore, in general, we suggest using BurnerRouter, which contains the receivers’ update functionality, in pair with a DefaultBurner as a global receiver.

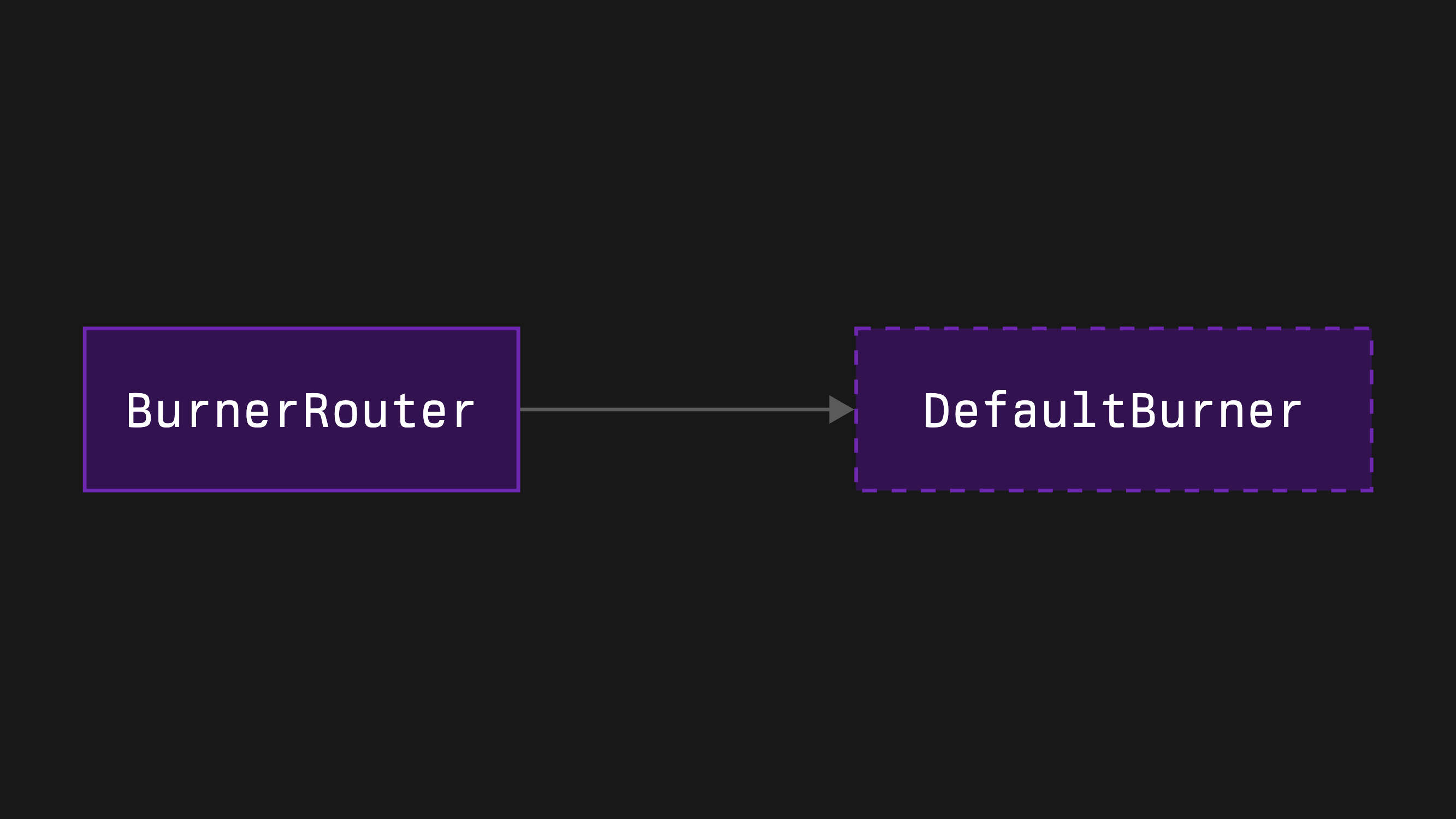

burner

Burner Router deployment
  1. Clone the burners repository by running the following command:
bash
git clone --recurse-submodules https://github.com/symbioticfi/burners.git
  1. Navigate into the cloned repository folder:
bash
cd burners
  1. Deploy a burner router contract using a simple script:
bash
OWNER=0xe8616DEcea16b5216e805B0b8caf7784de7570E7                 # address of the router’s owner
COLLATERAL=0x7f39C581F595B53c5cb19bD0b3f8dA6c935E2Ca0            # address of the collateral - wstETH (MUST be the same as for the Vault to connect)
DELAY=1814400                                                    # duration of the receivers’ update delay (= 21 days)
GLOBAL_RECEIVER=0xdCaC890b14121FD5D925E2589017Be68C2B5B324       # address of the pure burner corresponding to the collateral - wstETH_Burner (some collaterals are covered by us; see Deployments page)
NETWORK_RECEIVERS=[]                                             # array with elements like "\(network_address,receiver_address\)" meaning network-specific receivers
OPERATOR_NETWORK_RECEIVERS=[]                                    # array with elements like "\(network_address,operator_address,receiver_address\)" meaning operator-network-specific receivers

forge script script/deploy/BurnerRouter.s.sol:BurnerRouterScript \
  $OWNER \
  $COLLATERAL \
  $DELAY \
  $GLOBAL_RECEIVER \
  $NETWORK_RECEIVERS \
  $OPERATOR_NETWORK_RECEIVERS \
--sig "run(address,address,uint48,address,(address,address)[],(address,address,address)[])" \
--rpc-url=https://ethereum-rpc.publicnode.com \
--chain mainnet \
--broadcast
Burner Router deployment - technical (Solidity)

The following instruction assumes you have an already initialized Foundry repository (read more here).

  1. Install the burners repository by running the following command:
bash
forge install symbioticfi/burners
  1. Update (or create if not yet) a remappings.txt file inside your repository accordingly:
remappings.txt
...
@symbioticfi/burners/=lib/burners/
  1. Create a burner router contract using a BurnerRouterFactory contract:
DeployBurnerRouter.s.sol
import {IBurnerRouterFactory} from "@symbioticfi/burners/src/interfaces/router/IBurnerRouterFactory.sol";
import {IBurnerRouter} from "@symbioticfi/burners/src/interfaces/router/IBurnerRouter.sol";

// ...

   address BURNER_ROUTER_FACTORY = 0x99F2B89fB3C363fBafD8d826E5AA77b28bAB70a0;          // address of the BurnerRouterFactory (see Deployments page)

// ...

      address burnerRouter = IBurnerRouterFactory(BURNER_ROUTER_FACTORY).create(
         IBurnerRouter.InitParams({
               owner: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7,                       // address of the router’s owner
               collateral: 0x7f39C581F595B53c5cb19bD0b3f8dA6c935E2Ca0,                  // address of the collateral - wstETH (MUST be the same as for the Vault to connect)
               delay: 1814400,                                                          // duration of the receivers’ update delay (= 21 days)
               globalReceiver: 0xdCaC890b14121FD5D925E2589017Be68C2B5B324,              // address of the pure burner corresponding to the collateral - wstETH_Burner (some collaterals are covered by us; see Deployments page)
               networkReceivers: new IBurnerRouter.NetworkReceiver[](0),                // array with IBurnerRouter.NetworkReceiver elements meaning network-specific receivers
               operatorNetworkReceivers: new IBurnerRouter.OperatorNetworkReceiver[](0) // array with IBurnerRouter.OperatorNetworkReceiver elements meaning network-specific receivers
         })
      );

// ...

2. Core modules

Vault

Vault is a contract that:

  • storages the collateral
  • performs accounting in the sense of deposits and withdrawals
  • processes slashing events by transferring the collateral to the burner
  • allows deposit whitelisting and deposit limiting

For now, there are two types of Vaults we provide:

  1. Vault (version 1) - is a standard version of the Vault that is responsible for all of the functions mentioned above
  2. Tokenized Vault (version 2) - is an extended version of the Vault that represents stake shares as ERC-20 tokens

In general, we don’t need the tokenization of the stake as LRTs provide it. Therefore, we will use the common Vault.

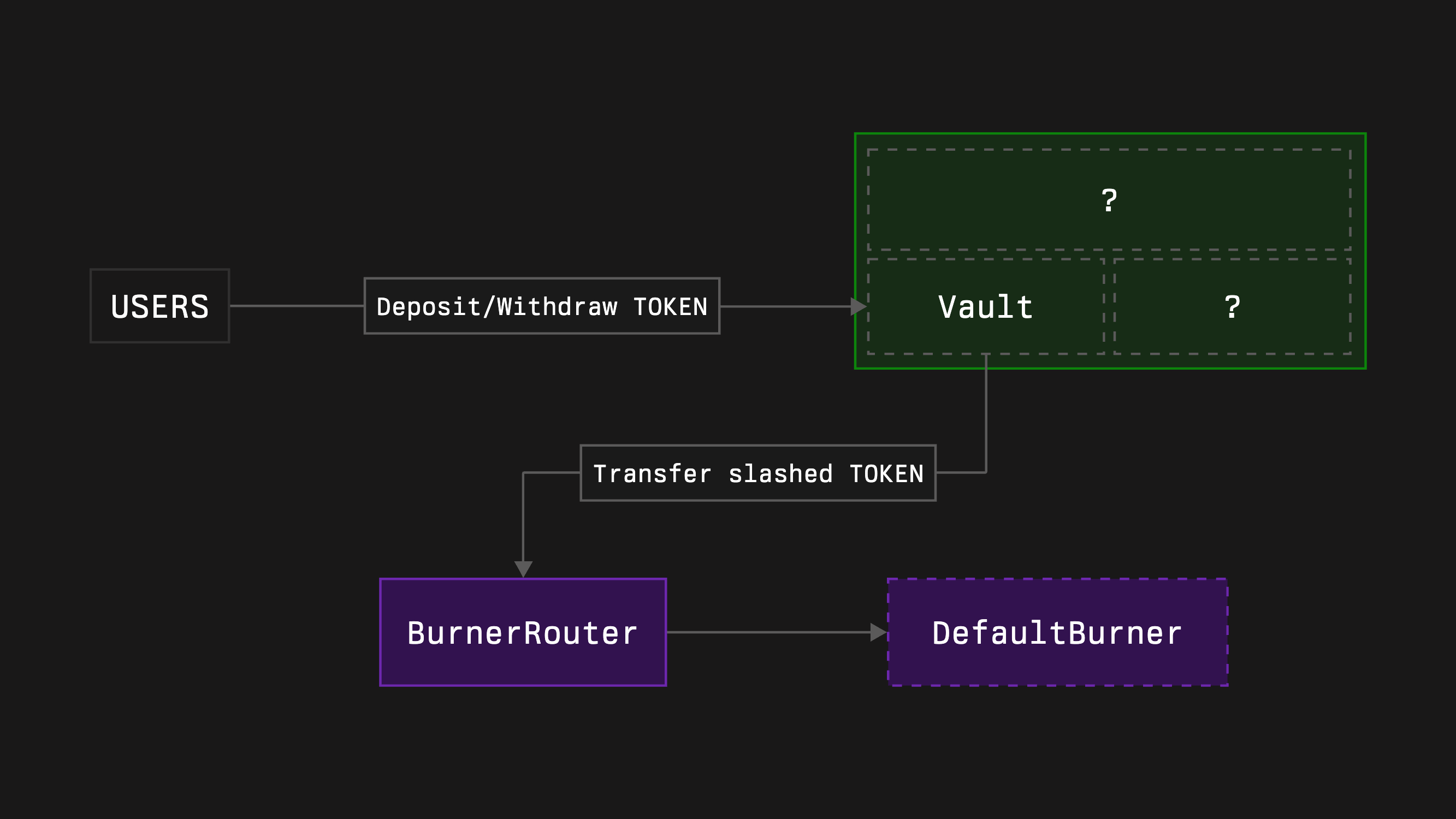

vault

Delegator

Delegator is a contract that allows Vault curator to allocate the stake to networks and operators.

At the current moment, we have four types of it:

  1. NetworkRestakeDelegator (type 0) - it accounts for allocations in absolute numbers for networks and in shares for operator-network pairs, so it allows having a staking and a common restaking across the networks (depending on the delegated amounts)
  2. FullRestakeDelegator (type 1) - it accounts for allocations in absolute numbers for both: networks and operator-network pairs, so it allows everything that NetworkRestakeDelegator allows and restaking across the operators inside the networks as an addition
  3. OperatorSpecificDelegator (type 2) - it is a simplified version of NetworkRestakeDelegator where only one specific operator has allocations
  4. OperatorNetworkSpecificDelegator (type 3) - it is the most simple version where only one specific operator at one specific network has an allocation

FullRestakeDelegator is able to cover all the delegation use cases. However, it is also able to create highly risky configurations that need proper handling. OperatorSpecificDelegator limits the possible use cases for LRTs with a non-single number of operators, and OperatorNetworkSpecificDelegator has more limitations than the previous one by design. Hence, let’s choose NetworkRestakeDelegator for our needs.

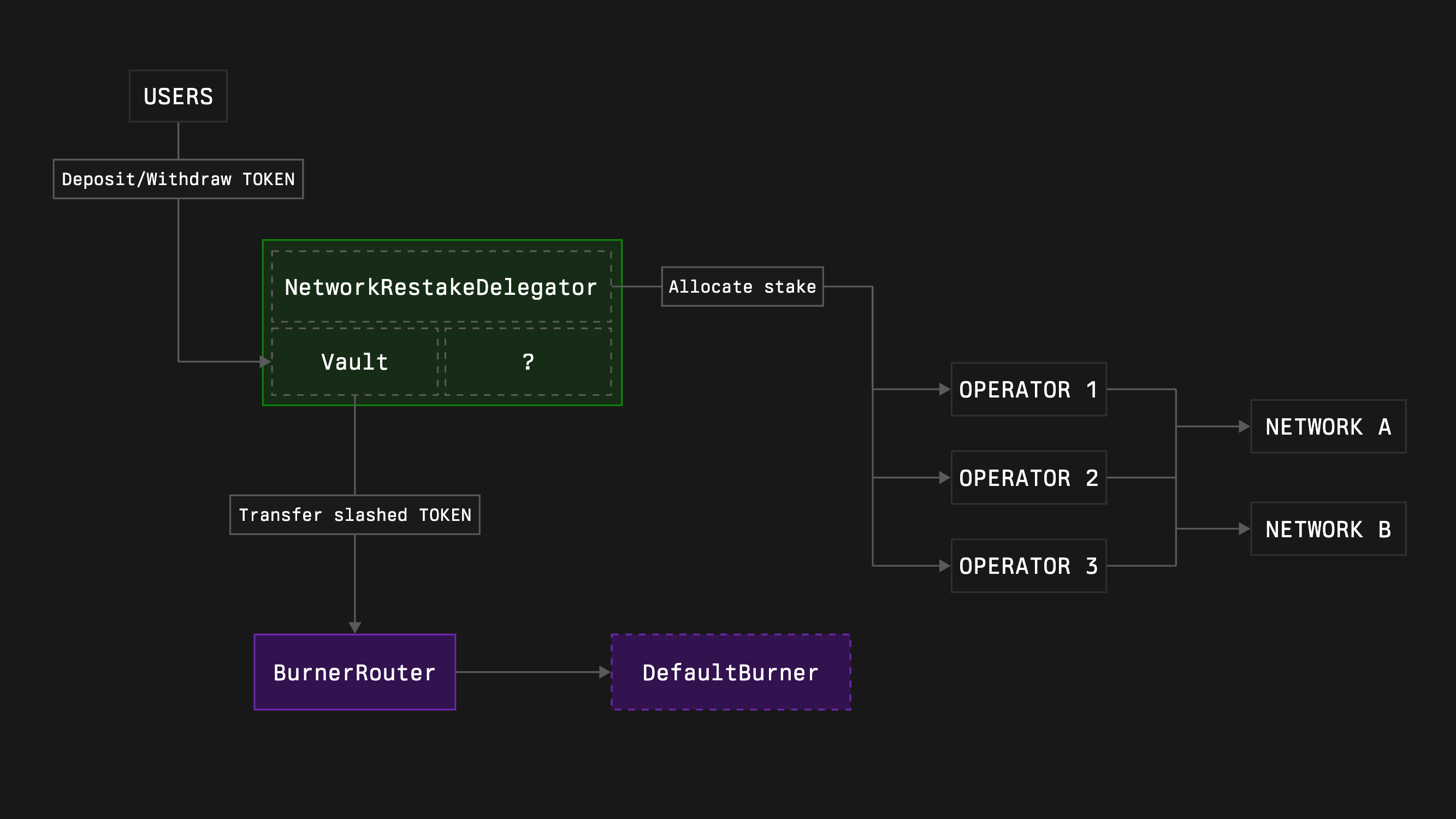

delegator

Slasher

Slasher is a contract that is responsible for the proper penalty execution, preserving networks’ rights to be able to slash the captured stake and preserving stakers’ rights not to be slashed more than deserved.

There are two types of Slasher:

  1. Slasher (type 0) - is a common Slasher that receives slashing requests and instantly executes them
  2. VetoSlasher (type 1) - it allows to veto received slashing requests using resolvers

For the VetoSlasher, networks may propose resolvers that can veto the slashing requests. It is also possible for the networks not to set a resolver that enables an instant slashing mechanic similar to Slasher’s. If the Vault curator is not ready to provide a stake without the resolver, the curator may simply not allocate any stake to such networks. Since the VetoSlasher can be seen as an extension of the Slasher, we’ll choose it.

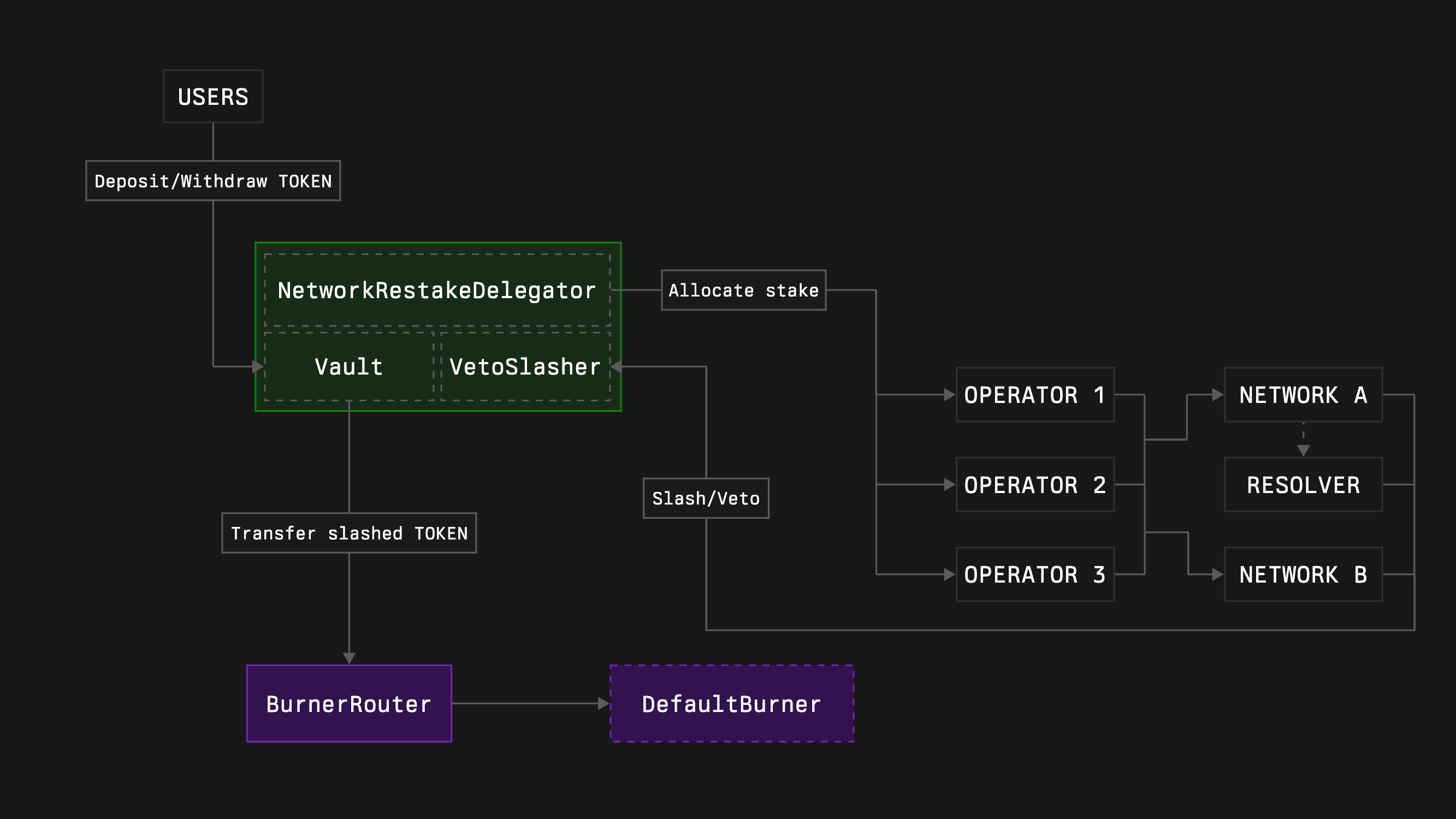

slasher

Core modules deployment

  1. Clone the core contracts repository by running the following command:

    bash
    git clone --recurse-submodules https://github.com/symbioticfi/core.git

  2. Navigate into the cloned repository folder:

    bash
    cd core

  3. Deploy core modules contracts using a simple script: Open DeployVault.s.sol, you will see the following config:

    bash
      // Address of the owner of the vault who can migrate the vault to new versions whitelisted by Symbiotic
  address OWNER = 0x0000000000000000000000000000000000000000;
  // Address of the collateral token
  address COLLATERAL = 0x0000000000000000000000000000000000000000;
  // Vault's burner to send slashed funds to (e.g., 0xdEaD or some unwrapper contract; not used in case of no slasher)
  address BURNER = 0x000000000000000000000000000000000000dEaD;
  // Duration of the vault epoch (the withdrawal delay for staker varies from EPOCH_DURATION to 2 * EPOCH_DURATION depending on when the withdrawal is requested)
  uint48 EPOCH_DURATION = 7 days;
  // Type of the delegator:
  //  0. NetworkRestakeDelegator (allows restaking across multiple networks and having multiple operators per network)
  //  1. FullRestakeDelegator (do not use without knowing what you are doing)
  //  2. OperatorSpecificDelegator (allows restaking across multiple networks with only a single operator)
  //  3. OperatorNetworkSpecificDelegator (allocates the stake to a specific operator and network)
  uint64 DELEGATOR_INDEX = 0;
  // Setting depending on the delegator type:
  // 0. NetworkLimitSetRoleHolders (adjust allocations for networks)
  // 1. NetworkLimitSetRoleHolders (adjust allocations for networks)
  // 2. NetworkLimitSetRoleHolders (adjust allocations for networks)
  // 3. network (the only network that will receive the stake; should be an array with a single element)
  address[] NETWORK_ALLOCATION_SETTERS_OR_NETWORK = [0x0000000000000000000000000000000000000000];
  // Setting depending on the delegator type:
  // 0. OperatorNetworkSharesSetRoleHolders (adjust allocations for operators inside networks; in shares, resulting percentage is operatorShares / totalOperatorShares)
  // 1. OperatorNetworkLimitSetRoleHolders (adjust allocations for operators inside networks; in shares, resulting percentage is operatorShares / totalOperatorShares)
  // 2. operator (the only operator that will receive the stake; should be an array with a single element)
  // 3. operator (the only operator that will receive the stake; should be an array with a single element)
  address[] OPERATOR_ALLOCATION_SETTERS_OR_OPERATOR = [0x0000000000000000000000000000000000000000];
  // Whether to deploy a slasher
  bool WITH_SLASHER = true;
  // Type of the slasher:
  //  0. Slasher (allows instant slashing)
  //  1. VetoSlasher (allows having a veto period if the resolver is set)
  uint64 SLASHER_INDEX = 1;
  // Duration of a veto period (should be less than EPOCH_DURATION)
  uint48 VETO_DURATION = 1 days;

  // Optional

  // Deposit limit (maximum amount of the active stake allowed in the vault)
  uint256 DEPOSIT_LIMIT = 0;
  // Addresses of the whitelisted depositors
  address[] WHITELISTED_DEPOSITORS = new address[](0);
  // Address of the hook contract which, e.g., can automatically adjust the allocations on slashing events (not used in case of no slasher)
  address HOOK = 0x0000000000000000000000000000000000000000;
  // Delay in epochs for a network to update a resolver
  uint48 RESOLVER_SET_EPOCHS_DELAY = 3;

Edit needed fields, and execute the script via:

bash
forge script script/DeployVault.s.sol:DeployVaultScript \
   --rpc-url=https://ethereum-rpc.publicnode.com \
   --chain mainnet \
   --broadcast
Core modules deployment - technical (Solidity)

The following instruction assumes you have an already initialized Foundry repository (read more here).

  1. Install the core contracts repository by running the following command:
bash
forge install symbioticfi/core
  1. Update (or create if not yet) a remappings.txt file inside your repository accordingly:
remappings.txt
...
@symbioticfi/core/=lib/core/
  1. Create core modules using a VaultConfigurator contract:
DeployVault.s.sol
import {IVaultConfigurator} from "@symbioticfi/core/src/interfaces/IVaultConfigurator.sol";
import {IVault} from "@symbioticfi/core/src/interfaces/vault/IVault.sol";
import {IBaseDelegator} from "@symbioticfi/core/src/interfaces/delegator/IBaseDelegator.sol";
import {INetworkRestakeDelegator} from "@symbioticfi/core/src/interfaces/delegator/INetworkRestakeDelegator.sol";
import {IBaseSlasher} from "@symbioticfi/core/src/interfaces/slasher/IBaseSlasher.sol";
import {IVetoSlasher} from "@symbioticfi/core/src/interfaces/slasher/IVetoSlasher.sol";

// ...

   address VAULT_CONFIGURATOR = 0x29300b1d3150B4E2b12fE80BE72f365E200441EC;                  // address of the VaultConfigurator (see Deployments page)

// ...

      address[] memory networkLimitSetRoleHolders = new address[](1);
      networkLimitSetRoleHolders[0] = 0xe8616DEcea16b5216e805B0b8caf7784de7570E7;
      address[] memory operatorNetworkSharesSetRoleHolders = new address[](1);
      operatorNetworkSharesSetRoleHolders[0] = 0xe8616DEcea16b5216e805B0b8caf7784de7570E7;
      (address vault, address networkRestakeDelegator, address vetoSlasher) = IVaultConfigurator(VAULT_CONFIGURATOR).create(
         IVaultConfigurator.InitParams({
               version: 1,                                                                   // Vault’s version (= common one)
               owner: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7,                            // address of the Vault’s owner (can migrate the Vault to new versions in the future)
               vaultParams: abi.encode(IVault.InitParams({
                  collateral: 0x7f39C581F595B53c5cb19bD0b3f8dA6c935E2Ca0,                    // address of the collateral - wstETH
                  burner: <BURNER_ROUTER>,                                                   // address of the deployed burner router
                  epochDuration: 604800,                                                     // duration of the Vault epoch in seconds (= 7 days)
                  depositWhitelist: false,                                                   // if enable deposit whitelisting
                  isDepositLimit: false,                                                     // if enable deposit limit
                  depositLimit: 0,                                                           // deposit limit
                  defaultAdminRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7,        // address of the Vault’s admin (can manage all roles)
                  depositWhitelistSetRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7, // address of the enabler/disabler of the deposit whitelisting
                  depositorWhitelistRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7,  // address of the depositors whitelister
                  isDepositLimitSetRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7,   // address of the enabler/disabler of the deposit limit
                  depositLimitSetRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7      // address of the deposit limit setter
               })),
               delegatorIndex: 0,                                                            // Delegator’s type (= NetworkRestakeDelegator)
               delegatorParams: abi.encode(INetworkRestakeDelegator.InitParams({
                  baseParams: IBaseDelegator.BaseParams({
                     defaultAdminRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7,     // address of the Delegator’s admin (can manage all roles)
                     hook: 0x0000000000000000000000000000000000000000,                       // address of the hook (if not zero, receives onSlash() call on each slashing)
                     hookSetRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7           // address of the hook setter
                  }),
                  networkLimitSetRoleHolders: networkLimitSetRoleHolders,                    // array of addresses of the network limit setters
                  operatorNetworkSharesSetRoleHolders: operatorNetworkSharesSetRoleHolders   // array of addresses of the operator-network shares setters
               })),
               withSlasher: true,                                                            // if enable Slasher module
               slasherIndex: 1,                                                              // Slasher’s type (= VetoSlasher)
               slasherParams: abi.encode(IVetoSlasher.InitParams({
                  baseParams: IBaseSlasher.BaseParams({
                     isBurnerHook: true                                                      // if enable the `burner` to receive onSlash() call after each slashing (is needed for the burner router workflow)
                  }),
                  vetoDuration: 86400,                                                       // veto duration (= 1 day)
                  resolverSetEpochsDelay: 3                                                  // number of Vault epochs needed for the resolver to be changed
               }))
         })
      );

// ...

3. Staker rewards

Rewards logic is not enshrined in the core contract, and we allow anyone to create their own implementations if needed. However, it requires resources like time, knowledge, and money. Therefore, we provide a default implementation of the staker rewards named DefaultStakerRewards. Its main goals are:

  • allow networks to distribute rewards for the stakers of the certain Vault
  • allow stakers to claim these rewards
  • allow Vault curators to receive fees from the distributed rewards

It is the only staker rewards implementation we provided, so let’s add it to our deployment configuration.

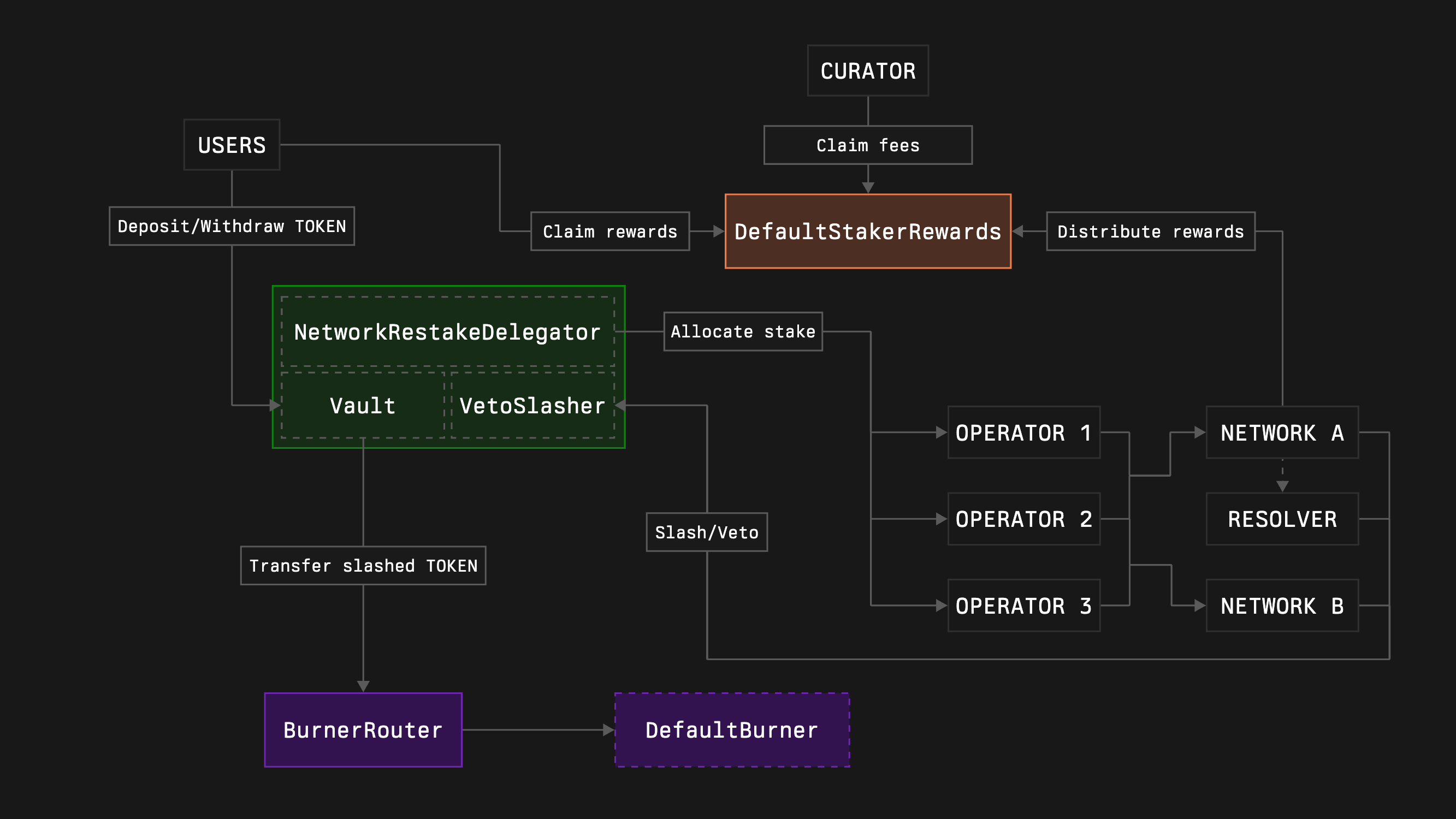

staker_rewards

Staker rewards deployment

  1. Clone the rewards contracts repository by running the following command:

    bash
    git clone --recurse-submodules https://github.com/symbioticfi/rewards.git

  2. Navigate into the cloned repository folder:

    bash
    cd rewards

  3. Deploy a staker rewards contract using a simple script:

bash
VAULT=<VAULT>                                                             # address of the deployed Vault
ADMIN_FEE=1000                                                            # admin fee percent to get from all the rewards distributions (10% = 1_000 | 100% = 10_000)
ADMIN=0xe8616DEcea16b5216e805B0b8caf7784de7570E7                          # address of the main admin (can manage all roles)
ADMIN_FEE_CLAIMER=0xe8616DEcea16b5216e805B0b8caf7784de7570E7              # address of the admin fee claimer
ADMIN_FEE_SETTER=0xe8616DEcea16b5216e805B0b8caf7784de7570E7               # address of the admin fee setter

forge script script/deploy/DefaultStakerRewards.s.sol:DefaultStakerRewardsScript \
   $VAULT \
   $ADMIN_FEE \
   $ADMIN \
   $ADMIN_FEE_CLAIMER \
   $ADMIN_FEE_SETTER \
--sig "run(address,uint256,address,address,address)" \
--rpc-url=https://ethereum-rpc.publicnode.com \
--chain mainnet \
--broadcast
Staker rewards deployment - technical (Solidity)

The following instruction assumes you have an already initialized Foundry repository (read more here).

  1. Install the rewards contracts repository by running the following command:
bash
forge install symbioticfi/rewards
  1. Update (or create if not yet) a remappings.txt file inside your repository accordingly:
remappings.txt
...
@symbioticfi/rewards/=lib/rewards/
  1. Create a staker rewards contract using a DefaultStakerRewardsFactory contract:
DefaultStakerRewards.s.sol
import {IDefaultStakerRewardsFactory} from "@symbioticfi/rewards/src/interfaces/defaultStakerRewards/IDefaultStakerRewardsFactory.sol";
import {IDefaultStakerRewards} from "@symbioticfi/rewards/src/interfaces/defaultStakerRewards/IDefaultStakerRewards.sol";

// ...

   address DEFAULT_STAKER_REWARDS_FACTORY = 0x290CAB97a312164Ccf095d75D6175dF1C4A0a25F; // address of the DefaultStakerRewardsFactory (see Deployments page)

// ...

      address defaultStakerRewards = IDefaultStakerRewardsFactory(DEFAULT_STAKER_REWARDS_FACTORY).create(IDefaultStakerRewards.InitParams({
         vault: <VAULT>,                                                                // address of the deployed Vault
         adminFee: 1000,                                                                // admin fee percent to get from all the rewards distributions (10% = 1_000 | 100% = 10_000)
         defaultAdminRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7,            // address of the main admin (can manage all roles)
         adminFeeClaimRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7,           // address of the admin fee claimer
         adminFeeSetRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7              // address of the admin fee setter
      }));

// ...

Advanced

Network-specific burners

The further text describes extended configurations that may bring risk reductions, wider support of the networks, and more capital efficiency for users.

Such a case is possible:

  • In general, a Vault wants the slashed funds to be burnt.
  • On the other hand, there is a highly reputable network that wants its slashings to be redistributed across the users who could suffer losses because of the operators’ malicious activity.
  • The Vault decides to integrate such a network to increase its capital efficiency.

Right now, our configuration doesn’t contain such logic, but it can already support it. As mentioned earlier, BurnerRouter allows splitting the slashed funds across any number of receivers depending on the slashing networks and the slashed operators. Therefore, given the network address that needs such functionality and the burner address to send the funds to, it is possible to either configure such behavior using an already existing burner router or take care of it during the deployment.

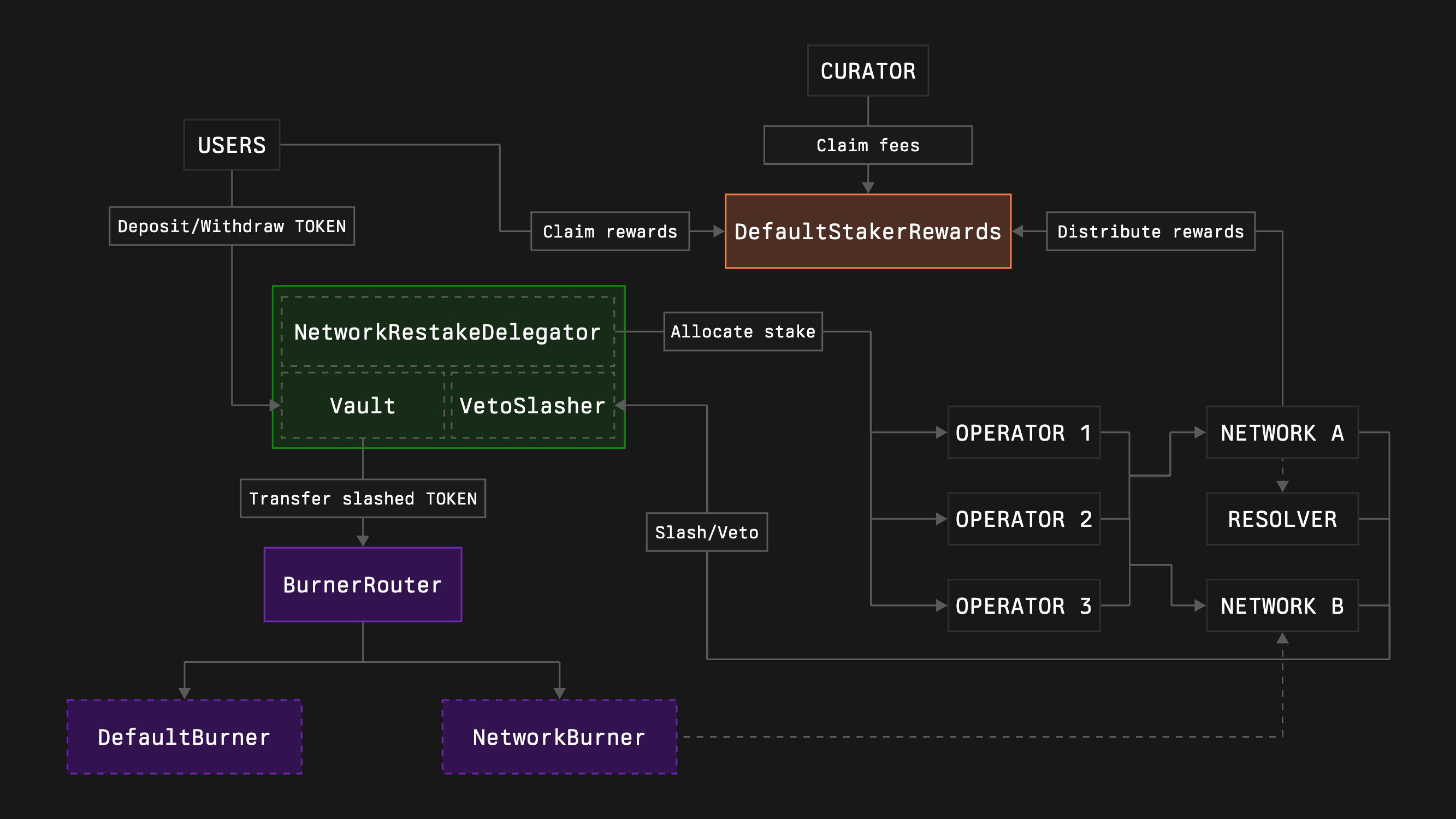

network-burner

Burner Router with preconfigured network-specific burner deployment

  1. Clone the burners repository by running the following command:

    bash
    git clone --recurse-submodules https://github.com/symbioticfi/burners.git

  2. Navigate into the cloned repository folder:

    bash
    cd burners

  3. Deploy a burner router contract with a preconfigured network-specific burner using a simple script:

bash
OWNER=0xe8616DEcea16b5216e805B0b8caf7784de7570E7                 # address of the router’s owner
COLLATERAL=0x7f39C581F595B53c5cb19bD0b3f8dA6c935E2Ca0            # address of the collateral - wstETH (MUST be the same as for the Vault to connect)
DELAY=1814400                                                    # duration of the receivers’ update delay (= 21 days)
GLOBAL_RECEIVER=0xdCaC890b14121FD5D925E2589017Be68C2B5B324       # address of the pure burner corresponding to the collateral - wstETH_Burner (some collaterals are covered by us; see Deployments page)
NETWORK_RECEIVERS=[\(<NETWORK_ADDRESS>,<RECEIVER_ADDRESS>\)]                                             # array with elements like "\(network_address,receiver_address\)" meaning network-specific receivers
OPERATOR_NETWORK_RECEIVERS=[]                                    # array with elements like "\(network_address,operator_address,receiver_address\)" meaning operator-network-specific receivers

forge script script/deploy/BurnerRouter.s.sol:BurnerRouterScript \
   $OWNER \
   $COLLATERAL \
   $DELAY \
   $GLOBAL_RECEIVER \
   $NETWORK_RECEIVERS \
   $OPERATOR_NETWORK_RECEIVERS \
--sig "run(address,address,uint48,address,(address,address)[],(address,address,address)[])" \
--rpc-url=https://ethereum-rpc.publicnode.com \
--chain mainnet \
--broadcast
Burner Router with preconfigured network-specific burner deployment - technical (Solidity)

The following instruction assumes you have an already initialized Foundry repository (read more here).

  1. Install the burners repository by running the following command:

    bash
    forge install symbioticfi/burners

  2. Update (or create if not yet) a remappings.txt file inside your repository accordingly:

    remappings.txt
    ...
@symbioticfi/burners/=lib/burners/

  3. Create a burner router contract using a BurnerRouterFactory contract:

    DeployBurnerRouter.s.sol
    import {IBurnerRouterFactory} from "@symbioticfi/burners/src/interfaces/router/IBurnerRouterFactory.sol";
import {IBurnerRouter} from "@symbioticfi/burners/src/interfaces/router/IBurnerRouter.sol";

// ...

   address BURNER_ROUTER_FACTORY = 0x99F2B89fB3C363fBafD8d826E5AA77b28bAB70a0;          // address of the BurnerRouterFactory (see Deployments page)

// ...

      IBurnerRouter.NetworkReceiver[] memory networkReceivers = new IBurnerRouter.NetworkReceiver[](1);
      networkReceivers[0] = IBurnerRouter.NetworkReceiver({
         network: <NETWORK_ADDRESS>,
         receiver: <RECEIVER_ADDRESS>
      });
      address burnerRouter = IBurnerRouterFactory(BURNER_ROUTER_FACTORY).create(
         IBurnerRouter.InitParams({
               owner: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7,                       // address of the router’s owner
               collateral: 0x7f39C581F595B53c5cb19bD0b3f8dA6c935E2Ca0,                  // address of the collateral - wstETH (MUST be the same as for the Vault to connect)
               delay: 1814400,                                                          // duration of the receivers’ update delay (= 21 days)
               globalReceiver: 0xdCaC890b14121FD5D925E2589017Be68C2B5B324,              // address of the pure burner corresponding to the collateral - wstETH_Burner (some collaterals are covered by us; see Deployments page)
               networkReceivers: networkReceivers,                                      // array with IBurnerRouter.NetworkReceiver elements meaning network-specific receivers
               operatorNetworkReceivers: new IBurnerRouter.OperatorNetworkReceiver[](0) // array with IBurnerRouter.OperatorNetworkReceiver elements meaning network-specific receivers
         })
      );

// ...
Configure Burner Router with network-specific burner after deployment

Generally, all the changes inside the burner router can be performed in 2 steps:

  1. Create a pending request to change some value
  2. Accept the request after waiting for a configured delay

Therefore, to set a new receiver (which can be a network-specific burner or treasury or any address) for a particular network the further steps are needed:

  1. Owner calls setNetworkReceiver(network, receiver)
  2. Wait for delay
  3. Anyone commits the change via acceptNetworkReceiver(network)

To set a new receiver for some exact operator inside a particular network:

  1. Owner calls setOperatorNetworkReceiver(network, operator, receiver)
  2. Wait for delay
  3. Anyone commits the change via acceptOperatorNetworkReceiver(network)

To set a new global receiver that gets funds if no specific receivers for a network-operator pair are configured:

  1. Owner calls setGlobalReceiver(receiver)
  2. Wait for delay
  3. Anyone commits the change via acceptGlobalReceiver(network)

To change a delay:

  1. Owner calls setDelay(newDelay)
  2. Wait for an old delay
  3. Anyone commits the change via acceptDelay()

Hook

Hook is a contract that the Vault curator can set to receive onSlash() call on each slashing event. Symbiotic doesn’t specify any logic behind it. However, the basic idea of the hook is to allow the creation of any delegation adjustment mechanic during the slashing.

We provide pure example implementations of some standard adjustment mechanics for each Delegator type - here.

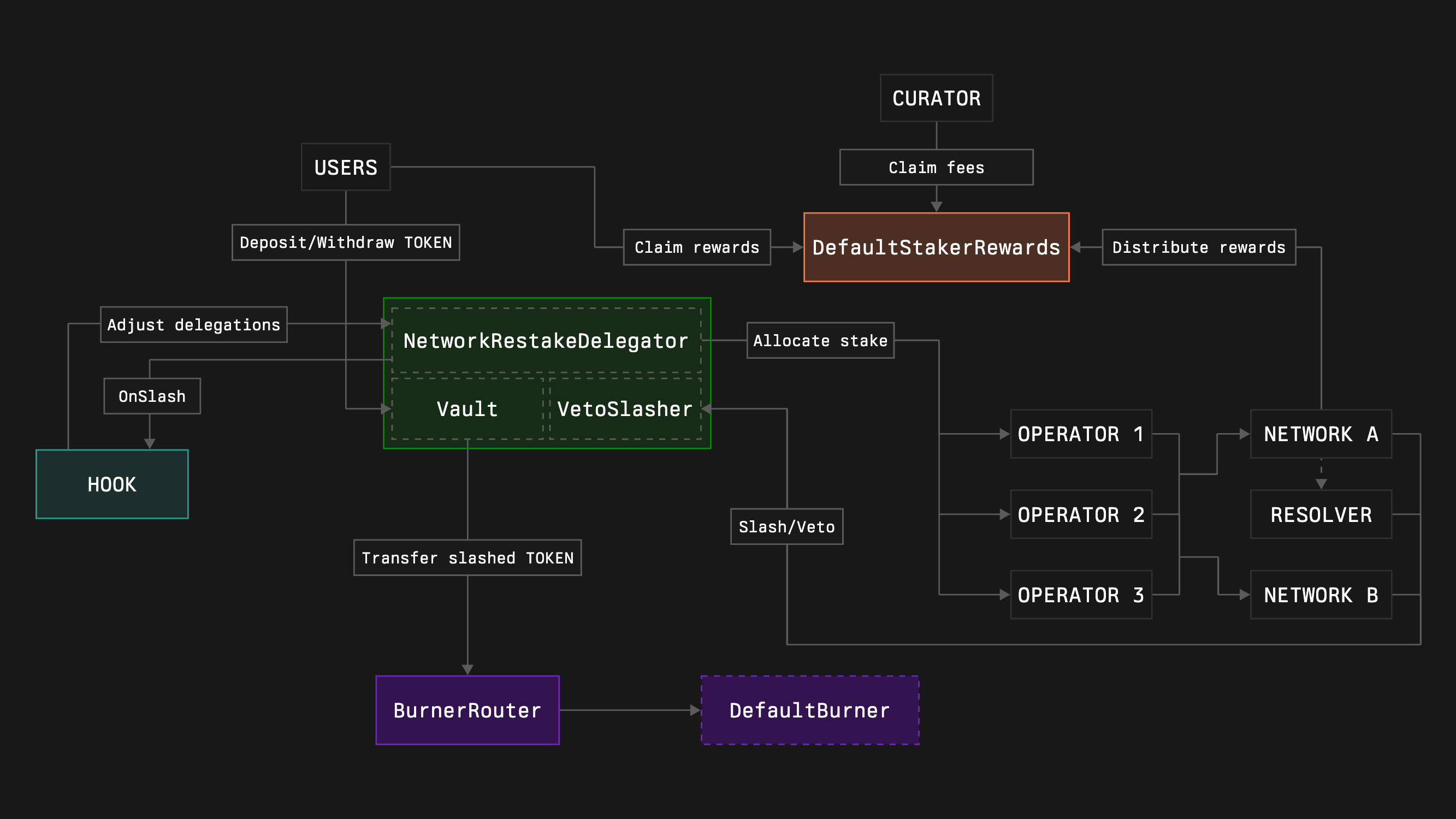

hook

Core modules deployment with hook

  1. Clone the core contracts repository by running the following command:

    bash
    git clone --recurse-submodules https://github.com/symbioticfi/core.git

  2. Navigate into the cloned repository folder:

    bash
    cd core

  3. Deploy core modules contracts using a simple script: Open DeployVault.s.sol, you will see the following config:

    bash
      // Address of the owner of the vault who can migrate the vault to new versions whitelisted by Symbiotic
  address OWNER = 0x0000000000000000000000000000000000000000;
  // Address of the collateral token
  address COLLATERAL = 0x0000000000000000000000000000000000000000;
  // Vault's burner to send slashed funds to (e.g., 0xdEaD or some unwrapper contract; not used in case of no slasher)
  address BURNER = 0x000000000000000000000000000000000000dEaD;
  // Duration of the vault epoch (the withdrawal delay for staker varies from EPOCH_DURATION to 2 * EPOCH_DURATION depending on when the withdrawal is requested)
  uint48 EPOCH_DURATION = 7 days;
  // Type of the delegator:
  //  0. NetworkRestakeDelegator (allows restaking across multiple networks and having multiple operators per network)
  //  1. FullRestakeDelegator (do not use without knowing what you are doing)
  //  2. OperatorSpecificDelegator (allows restaking across multiple networks with only a single operator)
  //  3. OperatorNetworkSpecificDelegator (allocates the stake to a specific operator and network)
  uint64 DELEGATOR_INDEX = 0;
  // Setting depending on the delegator type:
  // 0. NetworkLimitSetRoleHolders (adjust allocations for networks)
  // 1. NetworkLimitSetRoleHolders (adjust allocations for networks)
  // 2. NetworkLimitSetRoleHolders (adjust allocations for networks)
  // 3. network (the only network that will receive the stake; should be an array with a single element)
  address[] NETWORK_ALLOCATION_SETTERS_OR_NETWORK = [0x0000000000000000000000000000000000000000];
  // Setting depending on the delegator type:
  // 0. OperatorNetworkSharesSetRoleHolders (adjust allocations for operators inside networks; in shares, resulting percentage is operatorShares / totalOperatorShares)
  // 1. OperatorNetworkLimitSetRoleHolders (adjust allocations for operators inside networks; in shares, resulting percentage is operatorShares / totalOperatorShares)
  // 2. operator (the only operator that will receive the stake; should be an array with a single element)
  // 3. operator (the only operator that will receive the stake; should be an array with a single element)
  address[] OPERATOR_ALLOCATION_SETTERS_OR_OPERATOR = [0x0000000000000000000000000000000000000000];
  // Whether to deploy a slasher
  bool WITH_SLASHER = true;
  // Type of the slasher:
  //  0. Slasher (allows instant slashing)
  //  1. VetoSlasher (allows having a veto period if the resolver is set)
  uint64 SLASHER_INDEX = 1;
  // Duration of a veto period (should be less than EPOCH_DURATION)
  uint48 VETO_DURATION = 1 days;

  // Optional

  // Deposit limit (maximum amount of the active stake allowed in the vault)
  uint256 DEPOSIT_LIMIT = 0;
  // Addresses of the whitelisted depositors
  address[] WHITELISTED_DEPOSITORS = new address[](0);
  // Address of the hook contract which, e.g., can automatically adjust the allocations on slashing events (not used in case of no slasher)
  address HOOK = <HOOK>;
  // Delay in epochs for a network to update a resolver
  uint48 RESOLVER_SET_EPOCHS_DELAY = 3;

Edit needed fields, and execute the script via:

bash
forge script script/DeployVault.s.sol:DeployVaultScript \
   --rpc-url=https://ethereum-rpc.publicnode.com \
   --chain mainnet \
   --broadcast
Core modules deployment with hook - technical (Solidity)

The following instruction assumes you have an already initialized Foundry repository (read more here).

  1. Install the core contracts repository by running the following command:

    bash
    forge install symbioticfi/core

  2. Update (or create if not yet) a remappings.txt file inside your repository accordingly:

remappings.txt
...
@symbioticfi/core/=lib/core/

  1. Create core modules with hook using a VaultConfigurator contract:

    DeployVaultWithHook.s.sol
    import {IVaultConfigurator} from "@symbioticfi/core/src/interfaces/IVaultConfigurator.sol";
import {IVault} from "@symbioticfi/core/src/interfaces/vault/IVault.sol";
import {IBaseDelegator} from "@symbioticfi/core/src/interfaces/delegator/IBaseDelegator.sol";
import {INetworkRestakeDelegator} from "@symbioticfi/core/src/interfaces/delegator/INetworkRestakeDelegator.sol";
import {IBaseSlasher} from "@symbioticfi/core/src/interfaces/slasher/IBaseSlasher.sol";
import {IVetoSlasher} from "@symbioticfi/core/src/interfaces/slasher/IVetoSlasher.sol";

// ...

   address VAULT_CONFIGURATOR = 0x29300b1d3150B4E2b12fE80BE72f365E200441EC;                  // address of the VaultConfigurator (see Deployments page)

// ...

      address hook = <HOOK>;
      address[] memory networkLimitSetRoleHolders = new address[](2);
      networkLimitSetRoleHolders[0] = 0xe8616DEcea16b5216e805B0b8caf7784de7570E7;
      networkLimitSetRoleHolders[1] = hook;
      address[] memory operatorNetworkSharesSetRoleHolders = new address[](2);
      operatorNetworkSharesSetRoleHolders[0] = 0xe8616DEcea16b5216e805B0b8caf7784de7570E7;
      operatorNetworkSharesSetRoleHolders[1] = hook;

      (address vault, address networkRestakeDelegator, address vetoSlasher) = IVaultConfigurator(VAULT_CONFIGURATOR).create(
         IVaultConfigurator.InitParams({
               version: 1,                                                                   // Vault’s version (= common one)
               owner: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7,                            // address of the Vault’s owner (can migrate the Vault to new versions in the future)
               vaultParams: abi.encode(IVault.InitParams({
                  collateral: 0x7f39C581F595B53c5cb19bD0b3f8dA6c935E2Ca0,                    // address of the collateral - wstETH
                  burner: <BURNER_ROUTER>,                                                   // address of the deployed burner router
                  epochDuration: 604800,                                                     // duration of the Vault epoch in seconds (= 7 days)
                  depositWhitelist: false,                                                   // if enable deposit whitelisting
                  isDepositLimit: false,                                                     // if enable deposit limit
                  depositLimit: 0,                                                           // deposit limit
                  defaultAdminRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7,        // address of the Vault’s admin (can manage all roles)
                  depositWhitelistSetRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7, // address of the enabler/disabler of the deposit whitelisting
                  depositorWhitelistRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7,  // address of the depositors whitelister
                  isDepositLimitSetRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7,   // address of the enabler/disabler of the deposit limit
                  depositLimitSetRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7      // address of the deposit limit setter
               })),
               delegatorIndex: 0,                                                            // Delegator’s type (= NetworkRestakeDelegator)
               delegatorParams: abi.encode(INetworkRestakeDelegator.InitParams({
                  baseParams: IBaseDelegator.BaseParams({
                     defaultAdminRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7,     // address of the Delegator’s admin (can manage all roles)
                     hook: hook,                                                             // address of the hook (if not zero, receives onSlash() call on each slashing)
                     hookSetRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7           // address of the hook setter
                  }),
                  networkLimitSetRoleHolders: networkLimitSetRoleHolders,                    // array of addresses of the network limit setters
                  operatorNetworkSharesSetRoleHolders: operatorNetworkSharesSetRoleHolders   // array of addresses of the operator-network shares setters
               })),
               withSlasher: true,                                                            // if enable Slasher module
               slasherIndex: 1,                                                              // Slasher’s type (= VetoSlasher)
               slasherParams: abi.encode(IVetoSlasher.InitParams({
                  baseParams: IBaseSlasher.BaseParams({
                     isBurnerHook: true                                                      // if enable the `burner` to receive onSlash() call after each slashing (is needed for the burner router workflow)
                  }),
                  vetoDuration: 86400,                                                       // veto duration (= 1 day)
                  resolverSetEpochsDelay: 3                                                  // number of Vault epochs needed for the resolver to be changed
               }))
         })
      );

// ...
Configure core modules with hook after deployment
  1. We need the address of the Vault’s Delegator contract. It can be obtained via Vault.delegator()
  2. Make sure the caller has a Delegator.HOOK_SET_ROLE() role via the OpenZeppelin’s AccessControl contract
  3. Call Delegator.setHook(hook)

Deposit whitelist

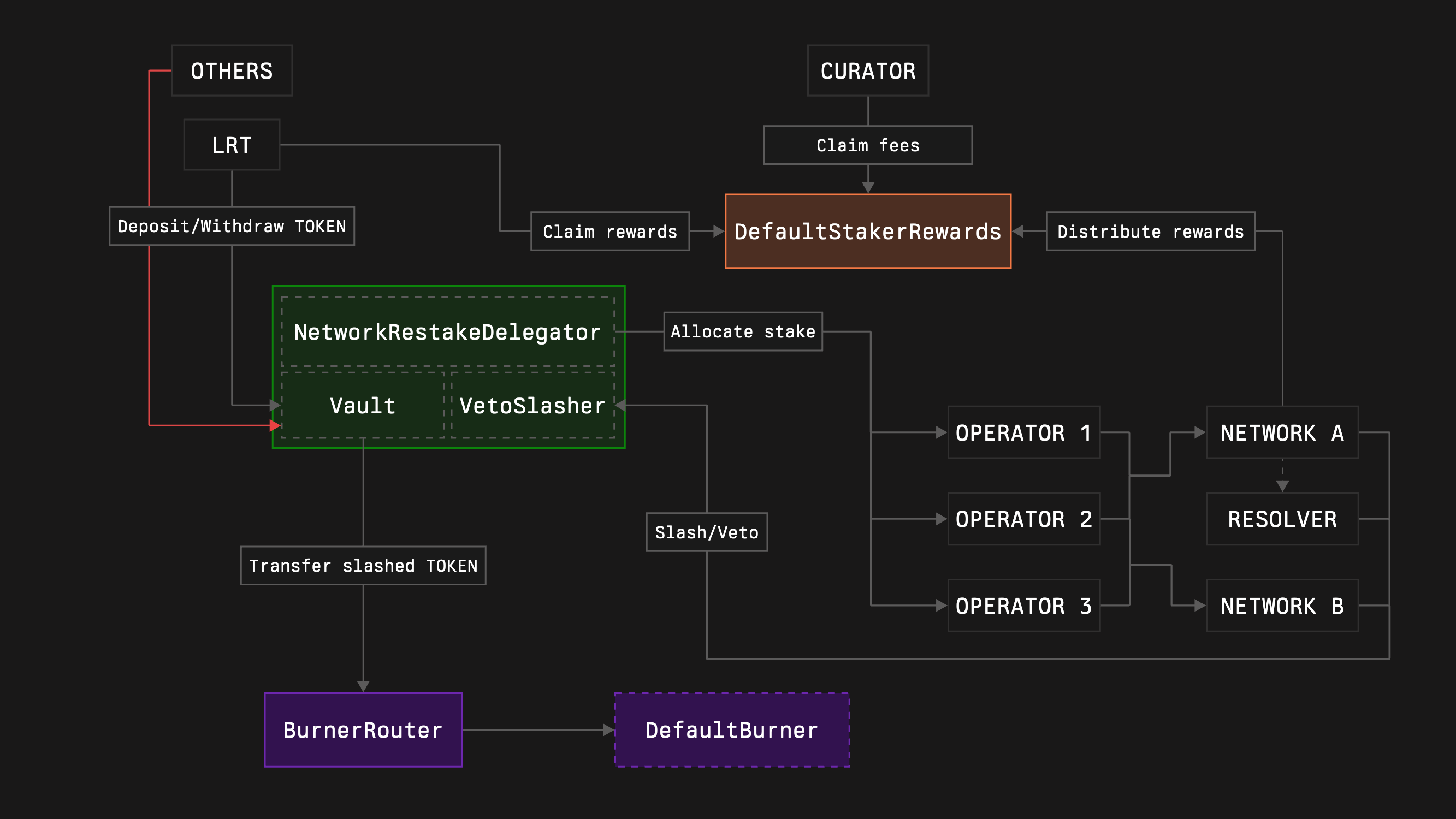

Symbiotic Vaults contain a feature called - deposit whitelist. It allows the restriction of making deposits to the Vault only by the whitelisted depositors. Several parties may need such functionality, e.g.:

  1. LRTs that want to fully isolate their Vaults from the external users to have a strict logic flow depending only on them
  2. Institutional entities that want to reduce the risks maximally and respect the legal side
  3. Some third-party entities that want to integrate the Vaults with some specific logic on top of them

whitelist

Core modules deployment with deposit whitelist

  1. Clone the core contracts repository by running the following command:

    bash
    git clone --recurse-submodules https://github.com/symbioticfi/core.git

  2. Navigate into the cloned repository folder:

    bash
    cd core

  3. Deploy core modules contracts using a simple script: Open DeployVault.s.sol, you will see the following config:

    bash
      // Address of the owner of the vault who can migrate the vault to new versions whitelisted by Symbiotic
  address OWNER = 0x0000000000000000000000000000000000000000;
  // Address of the collateral token
  address COLLATERAL = 0x0000000000000000000000000000000000000000;
  // Vault's burner to send slashed funds to (e.g., 0xdEaD or some unwrapper contract; not used in case of no slasher)
  address BURNER = 0x000000000000000000000000000000000000dEaD;
  // Duration of the vault epoch (the withdrawal delay for staker varies from EPOCH_DURATION to 2 * EPOCH_DURATION depending on when the withdrawal is requested)
  uint48 EPOCH_DURATION = 7 days;
  // Type of the delegator:
  //  0. NetworkRestakeDelegator (allows restaking across multiple networks and having multiple operators per network)
  //  1. FullRestakeDelegator (do not use without knowing what you are doing)
  //  2. OperatorSpecificDelegator (allows restaking across multiple networks with only a single operator)
  //  3. OperatorNetworkSpecificDelegator (allocates the stake to a specific operator and network)
  uint64 DELEGATOR_INDEX = 0;
  // Setting depending on the delegator type:
  // 0. NetworkLimitSetRoleHolders (adjust allocations for networks)
  // 1. NetworkLimitSetRoleHolders (adjust allocations for networks)
  // 2. NetworkLimitSetRoleHolders (adjust allocations for networks)
  // 3. network (the only network that will receive the stake; should be an array with a single element)
  address[] NETWORK_ALLOCATION_SETTERS_OR_NETWORK = [0x0000000000000000000000000000000000000000];
  // Setting depending on the delegator type:
  // 0. OperatorNetworkSharesSetRoleHolders (adjust allocations for operators inside networks; in shares, resulting percentage is operatorShares / totalOperatorShares)
  // 1. OperatorNetworkLimitSetRoleHolders (adjust allocations for operators inside networks; in shares, resulting percentage is operatorShares / totalOperatorShares)
  // 2. operator (the only operator that will receive the stake; should be an array with a single element)
  // 3. operator (the only operator that will receive the stake; should be an array with a single element)
  address[] OPERATOR_ALLOCATION_SETTERS_OR_OPERATOR = [0x0000000000000000000000000000000000000000];
  // Whether to deploy a slasher
  bool WITH_SLASHER = true;
  // Type of the slasher:
  //  0. Slasher (allows instant slashing)
  //  1. VetoSlasher (allows having a veto period if the resolver is set)
  uint64 SLASHER_INDEX = 1;
  // Duration of a veto period (should be less than EPOCH_DURATION)
  uint48 VETO_DURATION = 1 days;

  // Optional

  // Deposit limit (maximum amount of the active stake allowed in the vault)
  uint256 DEPOSIT_LIMIT = 0;
  // Addresses of the whitelisted depositors
  address[] WHITELISTED_DEPOSITORS = <DEPOSITORS_TO_WHITELIST>;
  // Address of the hook contract which, e.g., can automatically adjust the allocations on slashing events (not used in case of no slasher)
  address HOOK = 0x0000000000000000000000000000000000000000;
  // Delay in epochs for a network to update a resolver
  uint48 RESOLVER_SET_EPOCHS_DELAY = 3;

Edit needed fields, and execute the script via:

bash
forge script script/DeployVault.s.sol:DeployVaultScript \
   --rpc-url=https://ethereum-rpc.publicnode.com \
   --chain mainnet \
   --broadcast
Core modules deployment with deposit whitelist - technical (Solidity)

The following instruction assumes you have an already initialized Foundry repository (read more here).

  1. Install the core contracts repository by running the following command:

    bash
    forge install symbioticfi/core

  2. Update (or create if not yet) a remappings.txt file inside your repository accordingly:

    remappings.txt
    ...
@symbioticfi/core/=lib/core/

  3. Create core modules with deposit whitelist using a VaultConfigurator contract:

    DeployVaultWithWhitelist.s.sol
    import {Vault} from "@symbioticfi/core/src/contracts/vault/Vault.sol";
import {IVaultConfigurator} from "@symbioticfi/core/src/interfaces/IVaultConfigurator.sol";
import {IVault} from "@symbioticfi/core/src/interfaces/vault/IVault.sol";
import {IBaseDelegator} from "@symbioticfi/core/src/interfaces/delegator/IBaseDelegator.sol";
import {INetworkRestakeDelegator} from "@symbioticfi/core/src/interfaces/delegator/INetworkRestakeDelegator.sol";
import {IBaseSlasher} from "@symbioticfi/core/src/interfaces/slasher/IBaseSlasher.sol";
import {IVetoSlasher} from "@symbioticfi/core/src/interfaces/slasher/IVetoSlasher.sol";

// ...

   address VAULT_CONFIGURATOR = 0x29300b1d3150B4E2b12fE80BE72f365E200441EC;                  // address of the VaultConfigurator (see Deployments page)

// ...

      address[] memory networkLimitSetRoleHolders = new address[](1);
      networkLimitSetRoleHolders[0] = 0xe8616DEcea16b5216e805B0b8caf7784de7570E7;
      address[] memory operatorNetworkSharesSetRoleHolders = new address[](1);
      operatorNetworkSharesSetRoleHolders[0] = 0xe8616DEcea16b5216e805B0b8caf7784de7570E7;

      (address vault, address networkRestakeDelegator, address vetoSlasher) = IVaultConfigurator(VAULT_CONFIGURATOR).create(
         IVaultConfigurator.InitParams({
               version: 1,                                                                   // Vault’s version (= common one)
               owner: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7,                            // address of the Vault’s owner (can migrate the Vault to new versions in the future)
               vaultParams: abi.encode(IVault.InitParams({
                  collateral: 0x7f39C581F595B53c5cb19bD0b3f8dA6c935E2Ca0,                    // address of the collateral - wstETH
                  burner: <BURNER_ROUTER>,                                                   // address of the deployed burner router
                  epochDuration: 604800,                                                     // duration of the Vault epoch in seconds (= 7 days)
                  depositWhitelist: true,                                                    // if enable deposit whitelisting
                  isDepositLimit: false,                                                     // if enable deposit limit
                  depositLimit: 0,                                                           // deposit limit
                  defaultAdminRoleHolder: address(this),                                     // address of the Vault’s admin (can manage all roles)
                  depositWhitelistSetRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7, // address of the enabler/disabler of the deposit whitelisting
                  depositorWhitelistRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7,  // address of the depositors whitelister
                  isDepositLimitSetRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7,   // address of the enabler/disabler of the deposit limit
                  depositLimitSetRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7      // address of the deposit limit setter
               })),
               delegatorIndex: 0,                                                            // Delegator’s type (= NetworkRestakeDelegator)
               delegatorParams: abi.encode(INetworkRestakeDelegator.InitParams({
                  baseParams: IBaseDelegator.BaseParams({
                     defaultAdminRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7,     // address of the Delegator’s admin (can manage all roles)
                     hook: 0x0000000000000000000000000000000000000000,                       // address of the hook (if not zero, receives onSlash() call on each slashing)
                     hookSetRoleHolder: 0xe8616DEcea16b5216e805B0b8caf7784de7570E7           // address of the hook setter
                  }),
                  networkLimitSetRoleHolders: networkLimitSetRoleHolders,                    // array of addresses of the network limit setters
                  operatorNetworkSharesSetRoleHolders: operatorNetworkSharesSetRoleHolders   // array of addresses of the operator-network shares setters
               })),
               withSlasher: true,                                                            // if enable Slasher module
               slasherIndex: 1,                                                              // Slasher’s type (= VetoSlasher)
               slasherParams: abi.encode(IVetoSlasher.InitParams({
                  baseParams: IBaseSlasher.BaseParams({
                     isBurnerHook: true                                                      // if enable the `burner` to receive onSlash() call after each slashing (is needed for the burner router workflow)
                  }),
                  vetoDuration: 86400,                                                       // veto duration (= 1 day)
                  resolverSetEpochsDelay: 3                                                  // number of Vault epochs needed for the resolver to be changed
               }))
         })
      );

      Vault(vault).grantRole(Vault(vault).DEFAULT_ADMIN_ROLE(), 0xe8616DEcea16b5216e805B0b8caf7784de7570E7);
      Vault(vault).grantRole(Vault(vault).DEPOSITOR_WHITELIST_ROLE(), address(this));

      IVault(vault).setDepositorWhitelistStatus(<DEPOSITOR_TO_WHITELIST>, true);

      Vault(vault).renounceRole(Vault(vault).DEPOSITOR_WHITELIST_ROLE(), address(this));
      Vault(vault).renounceRole(Vault(vault).DEFAULT_ADMIN_ROLE(), address(this));

// ...
Configure core modules with deposit whitelist after deployment
  1. Make sure the caller has a Vault.DEPOSIT_WHITELIST_SET_ROLE() role via the OpenZeppelin’s AccessControl contract
  2. Call Vault.setDepositWhitelist(true)
  3. Make sure the caller has a Vault.DEPOSITOR_WHITELIST_ROLE() role via the OpenZeppelin’s AccessControl contract
  4. Call Vault.setDepositorWhitelistStatus(account, true)
