Relay Quickstart

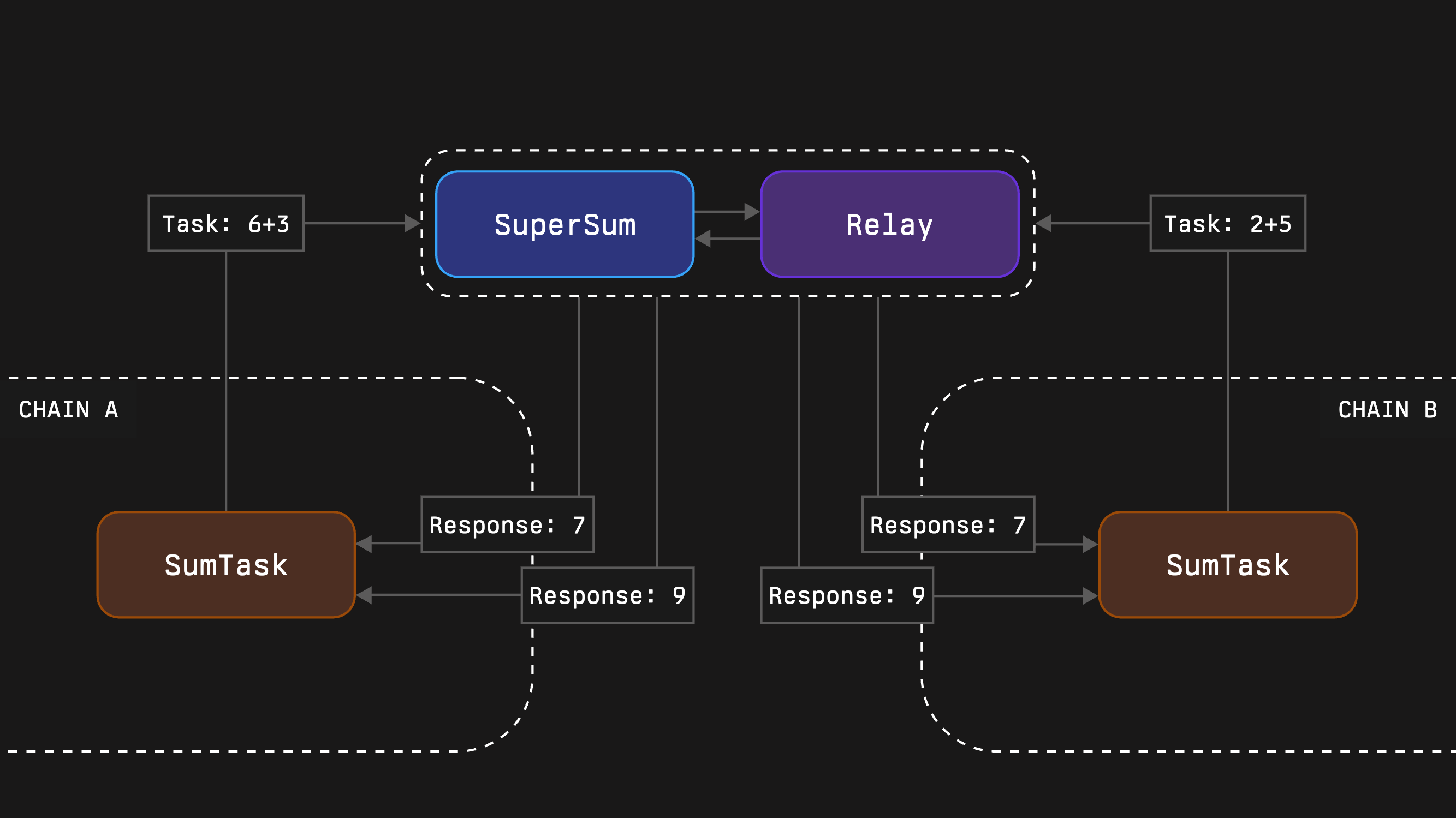

Symbiotic Super Sum spins up a relay network that runs simple sum computations. Schedule a job on any supported chain and the result is posted to every supported destination chain.

Clone Repository & Install Dependencies

Clone the Symbiotic Super Sum repository, initialize its submodules, and install the dependencies.

git clone https://github.com/symbioticfi/symbiotic-super-sum.git
cd symbiotic-super-sum
git submodule update --init --recursive
npm install

The symbiotic-super-sum/ directory is created and includes initialized submodules.

Generate Network Configuration

Generate the local network definition and helper artifacts Docker uses to start the stack.

./generate_network.sh

The script prompts for operator counts and creates a new temp-network/ directory with docker-compose.yml and writable data directories.

Start Network

Launch the Anvil chains, deployer, and relay services defined in the generated Compose file.

docker compose --project-directory temp-network up -d

This command launches the network services in Docker containers.

Expected output

symbiotic-super-sum % docker compose --project-directory temp-network up -d
[+] Running 9/9
✔ Network temp-network_symbiotic-network  Created                                                                                                                                                                   0.1s
✔ Container symbiotic-anvil-settlement    Healthy                                                                                                                                                                   4.2s
✔ Container symbiotic-anvil               Healthy                                                                                                                                                                   4.2s
✔ Container symbiotic-deployer            Exited                                                                                                                                                                  128.5s
✔ Container symbiotic-genesis-generator   Exited                                                                                                                                                                  138.2s
✔ Container symbiotic-relay-1             Started                                                                                                                                                                 138.4s
✔ Container symbiotic-relay-2             Started                                                                                                                                                                 138.4s
✔ Container symbiotic-sum-node-1          Started                                                                                                                                                                 138.6s
✔ Container symbiotic-sum-node-2          Started

Additional commands

Check status:

docker compose --project-directory temp-network ps

View logs:

# View all logs
docker compose --project-directory temp-network logs -f

# View specific service logs
docker compose --project-directory temp-network logs -f anvil
docker compose --project-directory temp-network logs -f anvil-settlement
docker compose --project-directory temp-network logs -f deployer
docker compose --project-directory temp-network logs -f genesis-generator
docker compose --project-directory temp-network logs -f relay-sidecar-1
docker compose --project-directory temp-network logs -f sum-node-1

Stop the network:

docker compose --project-directory temp-network down

Clean up data:

docker compose --project-directory temp-network down -v
rm -rf temp-network

Create Task

Submit a sum task to the network.

taskID=$(cast send --rpc-url http://127.0.0.1:8545 --json \
--private-key 0xac0974bec39a17e36ba4a6b4d238ff944bacb478cbed5efcae784d7bf4f2ff80 \
0x4826533B4897376654Bb4d4AD88B7faFD0C98528 \
"createTask(uint256,uint256)" 33 9 | jq -r '.logs[0].topics[1]')

This creates a task for the network, which later collects the required number of attestations and broadcasts the result to every supported destination chain

Verify Task Result

It is possible to verify result on the first chain:

result=$(cast call --rpc-url http://127.0.0.1:8545 \
0x4826533B4897376654Bb4d4AD88B7faFD0C98528 \
"responses(bytes32)" $taskID)
cast decode-abi --json "data()(uint48,uint256)" $result

It is also possible to verify result on the second chain:

result=$(cast call --rpc-url http://127.0.0.1:8546 \
0x5FC8d32690cc91D4c39d9d3abcBD16989F875707 \
"responses(bytes32)" $taskID)
cast decode-abi --json "data()(uint48,uint256)" $result

This prints the task result with the corresponding timestamp.

Expected output

symbiotic-super-sum % result=$(cast call --rpc-url http://127.0.0.1:8545 \
0x4826533B4897376654Bb4d4AD88B7faFD0C98528 \
"responses(bytes32)" $taskID)
cast decode-abi --json "data()(uint48,uint256)" $result
[
    1754052445,
    42
]

Build!

Get hands-on experience with the Relay SDK - a modular set of on-chain / off-chain components to implement Proof of Stake
